Vue实现树形结构样式和功能的实例代码_亦心_前端开发者

一、主要运用element封装的控件并封装成组件运用,如图所示

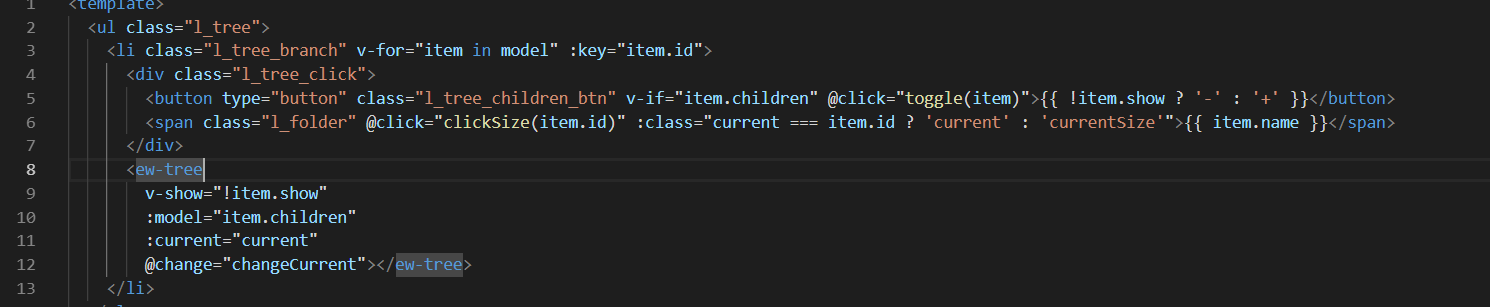

 代码如图所示:

 下面是子组件的代码:

<template>
 <ul class="l_tree">
  <li class="l_tree_branch" v-for="item in model" :key="item.id">
   <div class="l_tree_click">
    <button type="button" class="l_tree_children_btn" v-if="item.children" @click="toggle(item)">{{ !item.show ? '-' : '+' }}</button>
    <span class="l_folder" @click="clickSize(item.id)" :class="current === item.id ? 'current' : 'currentSize'">{{ item.name }}</span>
   </div>
   <ew-tree
    v-show="!item.show"
    :model="item.children"
    :current="current"
    @change="changeCurrent"></ew-tree>
  </li>
 </ul>
</template>
<script>
export default {
 name: 'EwTree',
 props: {
  model: {
   type: Array,
   default() {
    return []
   }
  },
  current: {
   type: String,
   default: ''
  }
 },
 methods: {
  toggle(item) {
   console.log(item)
   var idx = this.model.indexOf(item)
   this.$set(this.model[idx], 'show', !item.show)
  },
  clickSize(id) {
   console.log(1, id)
   this.$emit('change', id)
  },
  changeCurrent(id) {
   this.clickSize(id)
  }
 },
 mounted() {
 }
}
</script>
<style lang="less" scoped>
*{
 box-sizing: border-box;
 margin: 0;padding: 0;
}
*:before,*:after{
 box-sizing: border-box;
}
ul,
li {
 list-style: none;
}
.current{
 color: #e9c309 !important
}
.l_tree_container {
 width: 100%;
 height: 100%;
 box-shadow: 0 0 3px #ccc;
 margin: 13px;
 position: relative;
}

.l_tree {
 width: calc(100%);
 padding-left: 15px;
}
.l_tree_branch {
 width: 100%;
 height: 100%;
 display: block;
 padding: 13px;
 position: relative;
}

.l_tree_branch .l_tree_children_btn {
 width: 12px;
 height: 12px;
 background-color: #515a68;
 font-size: 8px;
 text-align: center;
 color: #bbbec1;
 outline: none;
 border: 0;
 cursor: pointer;
 border: 1px solid #bbbec1;
 line-height: 11px;
 margin-left: 5px;
}

ul.l_tree:before {
 content: '';
 border-left: 1px dashed #999999;
 height: calc(100% - 24px);
 position: absolute;
 left: 10px;
 top: 0px;
}
.l_tree,
.l_tree_branch {
 position: relative;
}

.l_tree_branch::after {
 content: '';
 width: 18px;
 height: 0;
 border-bottom: 1px dashed #bbbec1;
 position: absolute;
 right: calc(100% - 10px);
 top: 24px;
 left: -5px;
}

.l_tree_container>.l_tree::before,
.l_tree_container>.l_tree>.l_tree_branch::after {
 display: none;
}
.l_folder {
 font-size:11px;
 margin-left: 5px;
 display: inline;
 color: #bbbec1;
 cursor: pointer;
}
</style>

主要难点是:current传值问题,所以current绑定在父组件

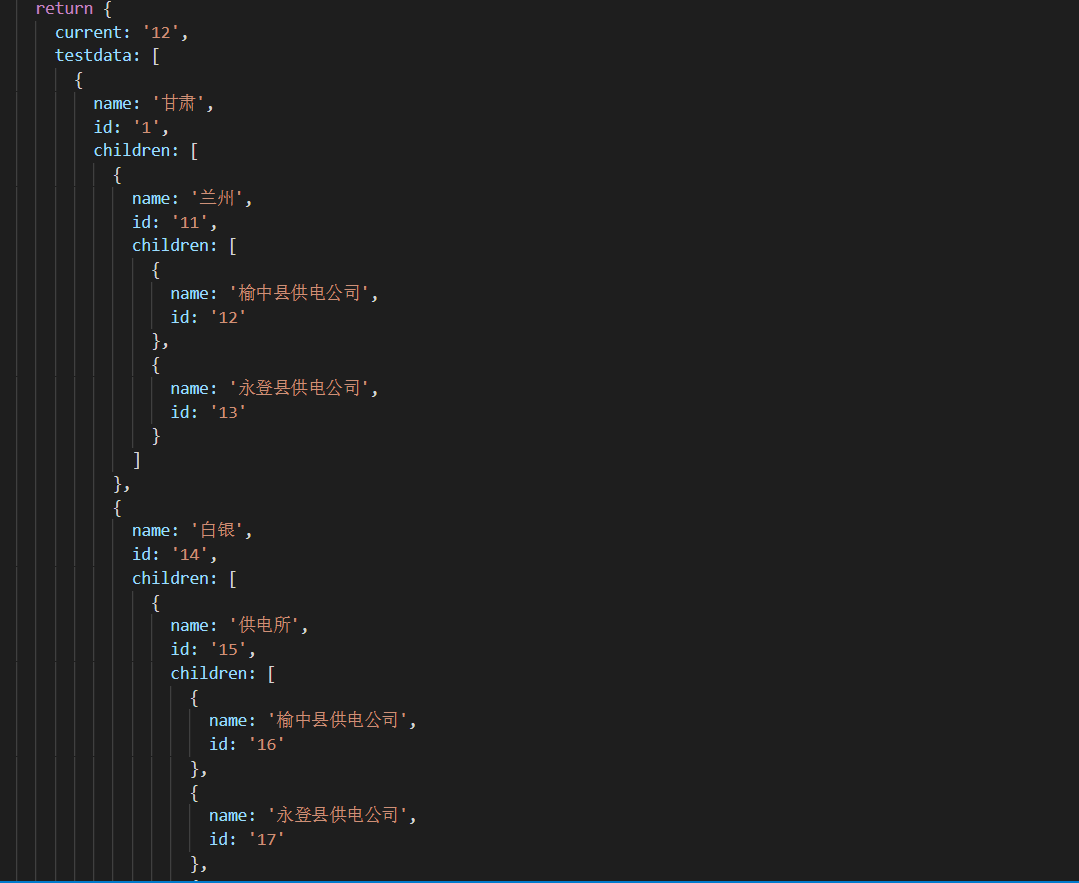

 父组件中的值和方法:







 当然在运行npm时是需要安装npm install ewtree -S,实现组件化

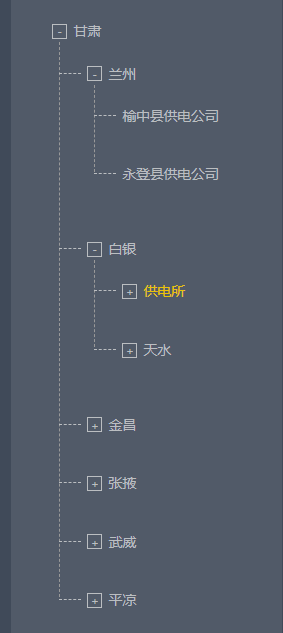

最终效果如下:

总结

以上所述是小编给大家介绍的vue实现树形结构样式和功能的实例代码,希望对大家有所帮助,如果大家有任何疑问请给我留言,小编会及时回复大家的。在此也非常感谢大家对前端开发者网站的支持!
